Local TLS registry + vCluster: getting a node to pull from a registry it doesn't trust

What this is

A self-contained lab that demonstrates one mechanism, end to end: a container registry with a self-signed certificate we generated, serving a container image that a Kubernetes node we configured pulls over HTTPS, and runs.

Kubernetes by default wants to only pull images from registries that it trusts, and in our world that implies it is done using a URL based on HTTPS, https://<hostname>. It's all about that little "s" after https, as the "s" means it is secure, it's encrypted.

Going to keep this very high level, as we're not doing a paper about the encryption, but rather how it impacts us. At the simplest level, trust is established using a public/private key pair bound to the registry's hostname. Once that trust is verified, a secret session key is generated to encrypt the actual data transfer.

In simple terms: The registry holds a private key and a public certificate bound to its hostname. During the HTTPS handshake, the registry proves its identity using its private key, and your Kubernetes node verifies that identity using the certificate. Once trusted, they establish a secret shared key to encrypt the image download, ensuring nobody can intercept or modify it in transit.

The interesting part is not the registry; it is what it takes to make a Kubernetes node trust a certificate nobody has ever heard of.

make run && make pull && make build && make k8s && make app

That is the whole cycle. §8 walks through it line by line, including the teardown.

Let's unpack the above a little deeper, which will quickly bring the problem into view.

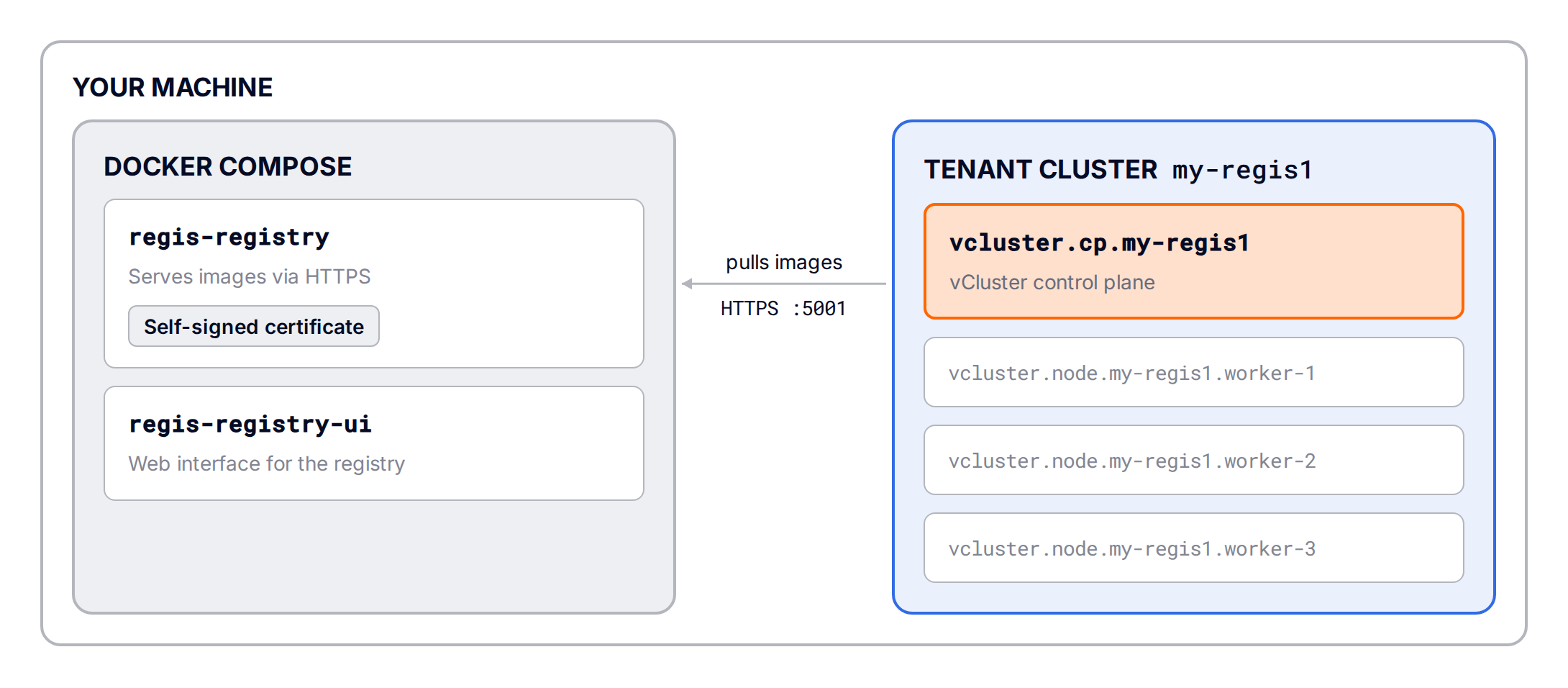

First our local stack. It all starts as a local Docker engine, onto which we then deploy vCluster, which in turn runs a tenant cluster, vCluster in Docker (vind).

At this point the vCluster container images etc. run on our local Docker engine.

All images used to deploy our environment are sourced from the local Docker image store. Life is still good and simple at this point.

We now create our project deployment manifest files. These follow the structure of: image: <source/imageName:tag>.

First option, and easiest, simply pull (reference) public registries directly. But this starts becoming a pain during development, where you might have a high cadence of compile/build/verify/fix/repeat.

So this works if you don't deploy/redeploy a lot, and if your security department does not force a local verified container registry. The world is not that nice though. Life's not that easy.

So what now... ok, we will still pull <source/imageName:tag> from a public registry, but now store the container images in our local Docker registry, and then re-code the manifest files to deploy the images from our local registry.

And now life gets interesting. When we now try to use our Docker registry in the manifest files as the source for the image tag, things fall apart. We get an error: can't find the images. Easiest way to resolve this: we copy (load) the container images onto each Kubernetes node prior to the manifest file being applied. All's working again.

If this is 5 images, deployed once, no worries, but it quickly becomes a pain again when your project is, let's say, 30 images. You're lucky if they're under 100MB, but life deals you a nasty one and they're more like 500MB-1GB, which you compile, rebuild as container images, and each time you're required to re-copy them back onto your Kubernetes nodes before being able to deploy. This you don't want. (I'm not even going to bother to show this copy/load command, it's just a bad idea.)

This is the problem, this is what we fix below.

Now: The How

Our solution: we host our own registry as a shared service on our Docker Compose deployment, and we then reference that URL endpoint as a container registry.

Why Docker Compose you ask? Well, to simulate a larger "corporate" environment we might already be simulating various other shared services like a Kafka cluster, a HashiCorp Vault, or (...). The registry simply becomes another shared service that we want to provide, that does not belong to the project. In this case, the project is what we're deploying onto the project Kubernetes cluster. Everything else is common shared corporate services, and this is where the registry will normally live.

But things are never just easy... Because of all of this "local Kubernetes cluster" and local "registry" on Docker Compose, we run into our next little pebble, or boulder, in the road. Kubernetes, or make that the containerd process specifically (and our world of "we don't trust anything anymore"), wants to source images from the registry using HTTPS.

And that's the entire build below, our little workaround. In a production space your registry would have a registered hostname with a registered certificate. In our lab, we're going to create a self-signed certificate and load it into containerd, making it trust our registry service.

What we end with is a set of correctly structured manifest files, using the right protocol, referencing a real registry, without executing that nasty copy "fix" from above. In other words, more representative of the real world.

1. The situation

The registry uses a self-signed certificate we generate ourselves. It is not issued by a public CA (Certificate Authority) and never will be: it serves on localhost behind the Docker VM gateway, so there is nothing to issue it from.

The consequence: every image pull is an HTTPS connection to a server whose certificate nothing trusts by default. Before a single application container can start, that trust has to be established on every node.

That is the whole problem. Everything below is about how it is solved, and where the solving is fragile.

2. What "a CA cert for k8s" actually means

Worth being precise, because two things people reach for first do not work.

It is not a pod-level thing. A common instinct is to ship the CA to the cluster the way you ship any other configuration: a ConfigMap, a Secret, an env var. None of that helps. The image deploy on the node executes as a set of steps. The kubelet asks containerd to pull the image on the node. There is no pod spec in which to express "trust this CA", because the pod has not been created yet.

It is not imagePullSecrets. A kubernetes.io/dockerconfigjson Secret carries registry credentials (username, password, token). It has no field for a certificate authority. This is a widespread and expensive misunderstanding; if someone reports "we added the CA to the image pull secret and it still fails", they are right that it still fails.

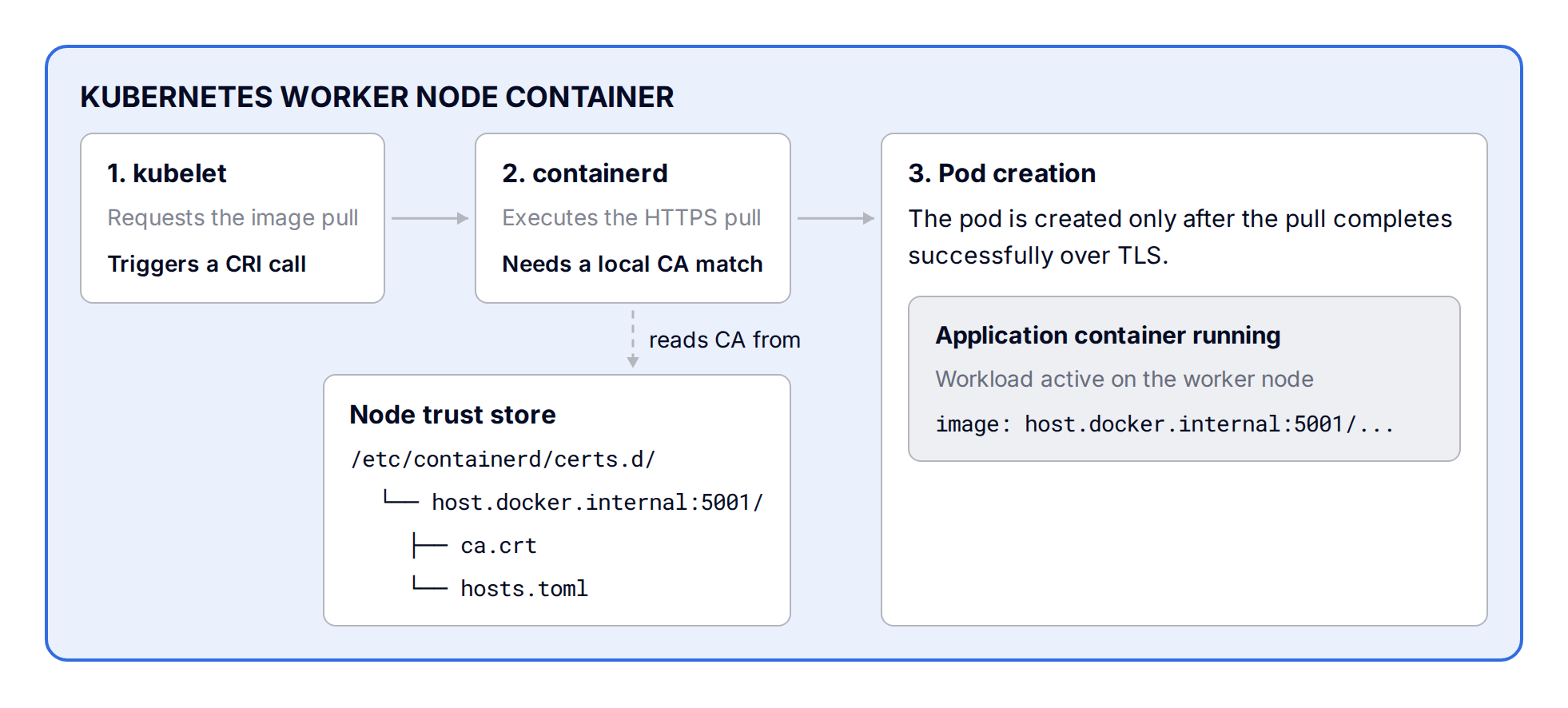

What it actually is: the container runtime on the node, containerd, needs the CA in its own trust store, in its own configuration, before it will complete a TLS handshake with that registry.

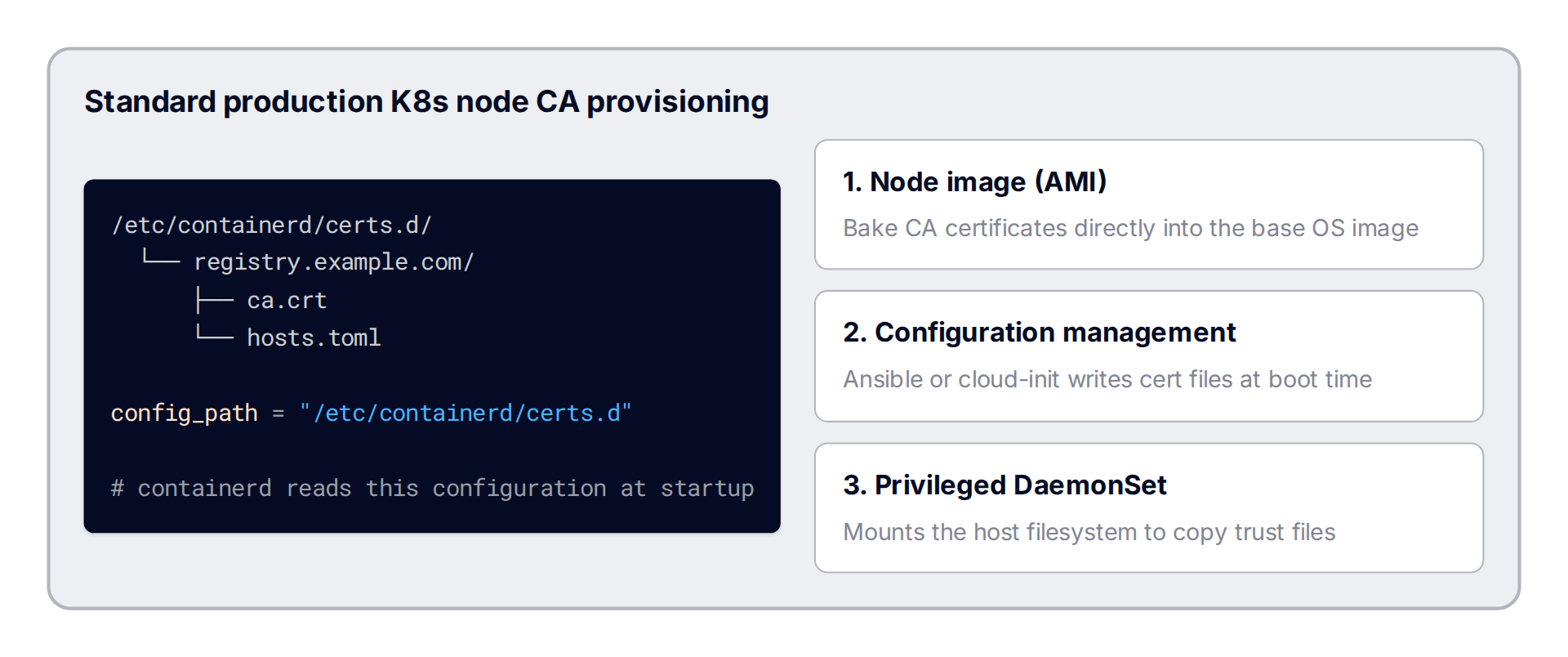

In an ordinary cluster you would arrange this by whatever provisions your nodes: bake the CA into the node image, script it at boot, or reach in with a privileged DaemonSet that mounts the host filesystem.

3. Why a tenant cluster in Docker is the hard case

vCluster with the Docker driver does not give you any of those routes.

The lever we do have is the one that created them: the docker CLI. If the node is a container, we can go inside it.

docker exec <node> ... # run a command inside the node
docker cp <file> <node>:<path> # put a file inside the node

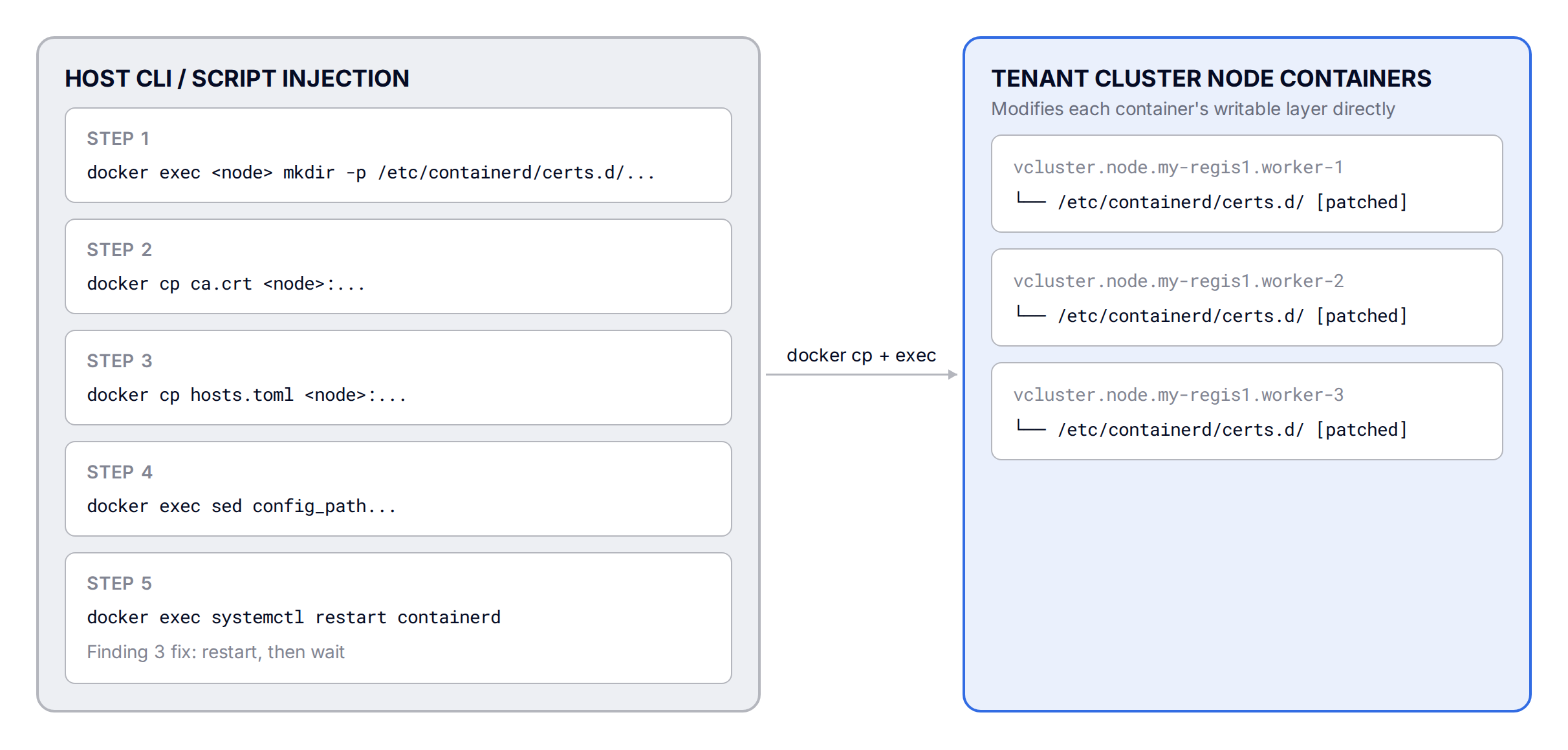

So the workaround is: treat each Kubernetes node as a Docker container and reach into it with the Docker CLI after it has been created.

That is the entire trick. Concretely, for each of the four node containers:

# 1. make the directory the CA will live in
docker exec <node> mkdir -p /etc/containerd/certs.d/host.docker.internal:5001

# 2. copy the CA into it
docker cp ca.crt <node>:/etc/containerd/certs.d/host.docker.internal:5001/ca.crt

# 3. copy the instruction file beside it
docker cp hosts.toml <node>:/etc/containerd/certs.d/host.docker.internal:5001/hosts.toml

# 4. tell containerd that directory is where it should look
docker exec <node> sed -i 's|config_path = ""| config_path = "/etc/containerd/certs.d"|' ...

# 5. make containerd notice -- and WAIT for it
docker exec <node> systemctl restart containerd

Why this is a workaround and not a solution: it is a post-hoc patch applied by an external process over the Docker API, to state that lives inside a container's writable layer. It has no life cycle. The nodes are recreated on any make k8s-down / make k8s, and on rescheduling after a crash, and the CA is gone, because it was never in the image and never on a volume.

That is why it lives in scripts/patch_nodes_ca.sh and not in a make recipe: a chain of docker cp steps with no seam is the thing most worth being able to assert against.

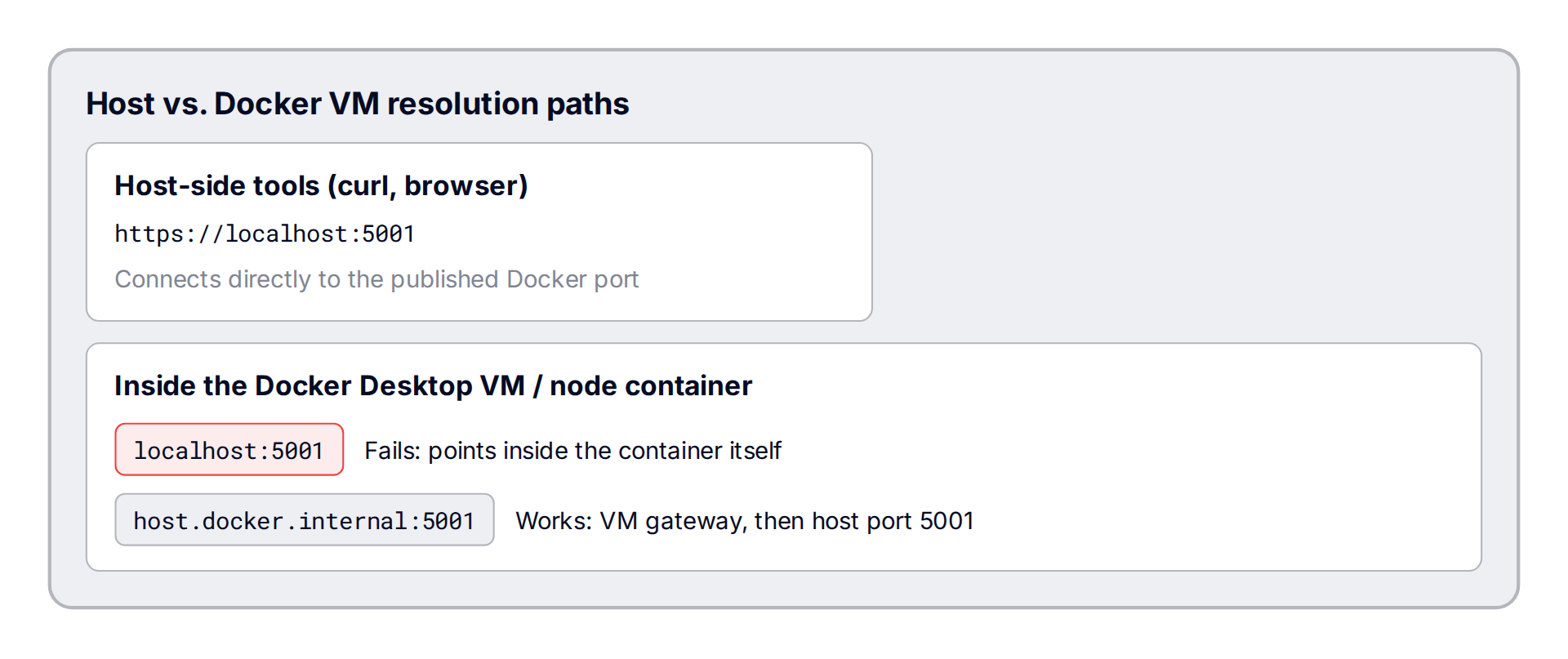

4. Two vantage points, and why the gateway name

There are two ways to reach the registry, and they are not interchangeable:

host.docker.internal is Docker's embedded DNS name for the VM gateway. It resolves to the host from inside any container, and the host's published port is then reachable. This is the fact the whole design rests on, and it is why the certificate, the trust store and the image reference all key on it.

A TLS client checks the name it dialled against the certificate's SAN list, not the server's own hostname. So there is one SAN per client vantage point:

Two conditions must both hold for a real pull to succeed:

5. The authority: derive it once

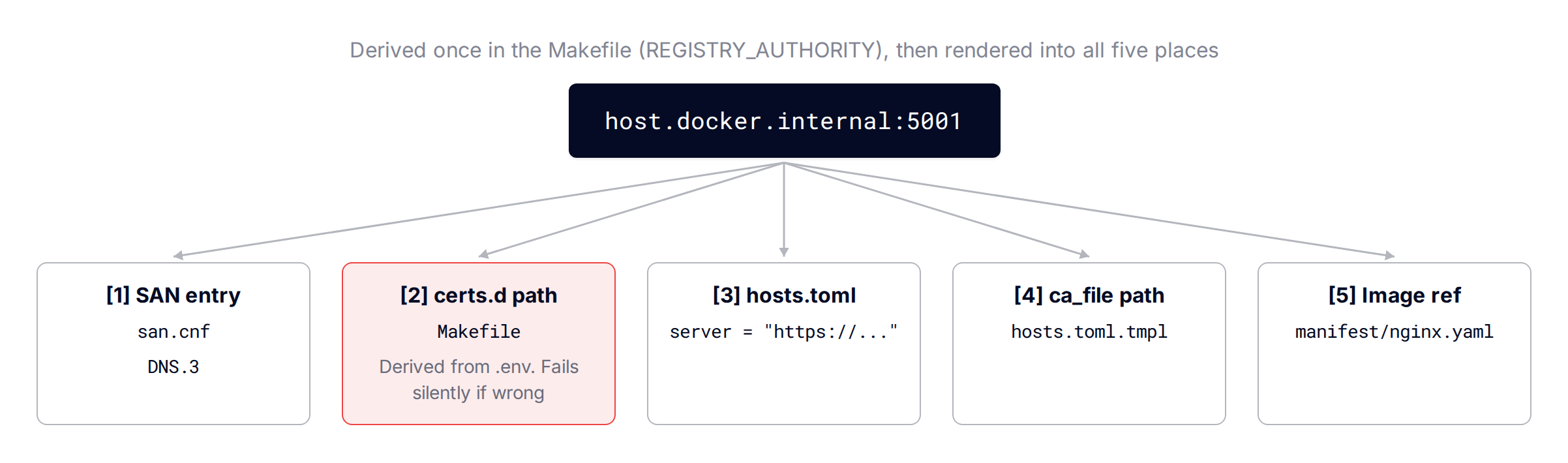

The address host.docker.internal:5001 has to appear in five places, and if any one of them disagrees with the others the CA can be present, correct, and never consulted, with no error and no log line anywhere:

The dangerous one is [2]. The directory containerd scans is named after the registry host. Put the CA in certs.d/localhost:5001/ and containerd is looking for a registry called localhost:5001, which is not the one the node dials. You get a correct certificate, installed exactly as instructed, in a directory nothing will ever read.

So this project derives it once, in the Makefile, and renders everything else from it:

include .env
REGISTRY_HOST ?= host.docker.internal
REGISTRY_PORT ?= $(HOST_PORT_REGISTRY)
REGISTRY_AUTHORITY := $(REGISTRY_HOST):$(REGISTRY_PORT)
CERTSD_IN_NODE := /etc/containerd/certs.d/$(REGISTRY_AUTHORITY)

hosts.toml is not committed with a port baked into it; it is a template (scripts/containerd-hosts.toml.tmpl) rendered at build time. Change HOST_PORT_REGISTRY in .env and all five follow. The mismatch family is structurally impossible.

And if the port is missing, the Makefile fails at parse time naming the real cause, rather than surfacing much later as a curl error that reads like a registry fault:

Makefile:65: *** HOST_PORT_REGISTRY is not set in .env — the registry authority cannot be derived. Stop.

6. The mechanism, in detail

The story is above. This is the machinery.

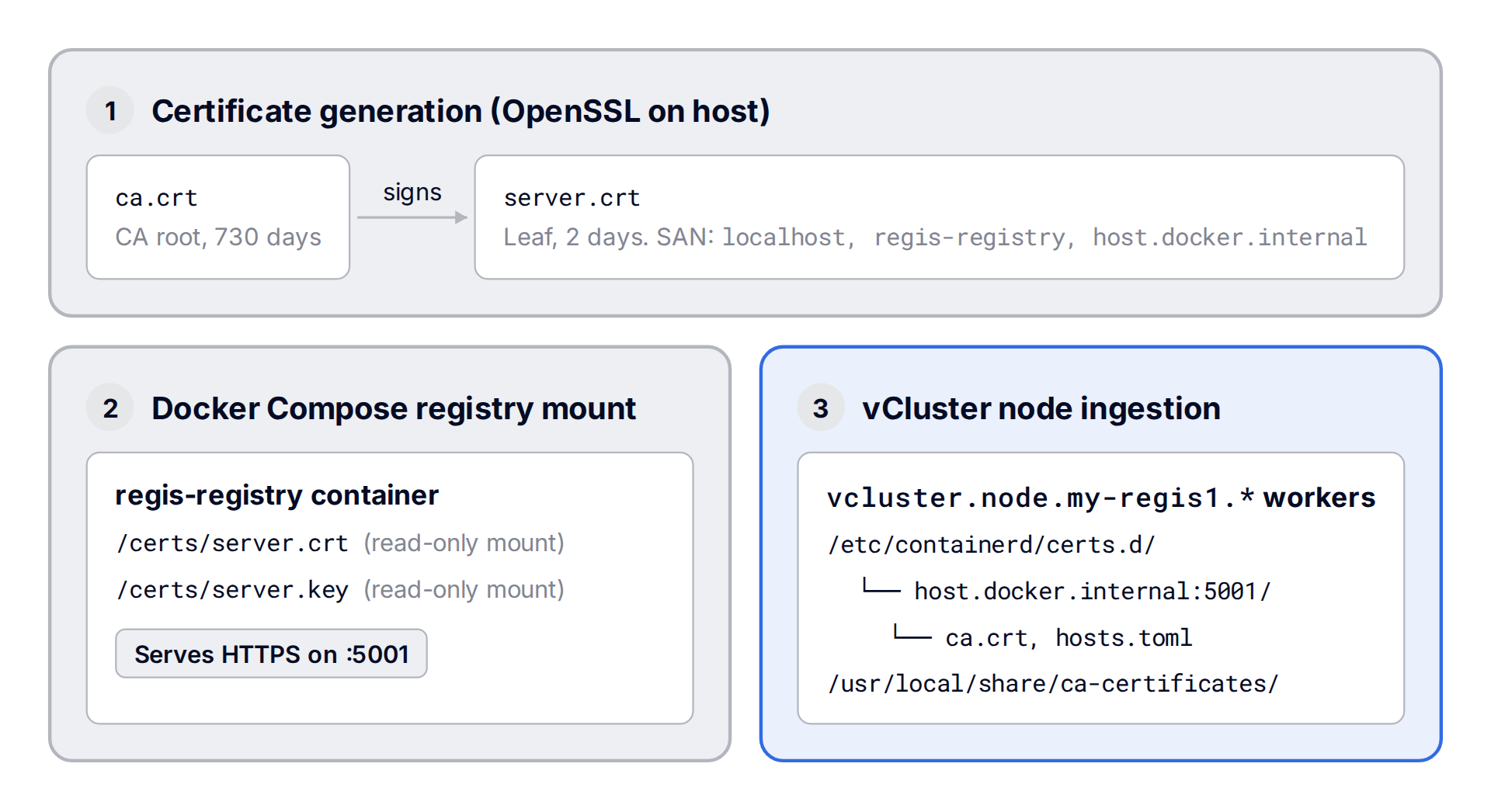

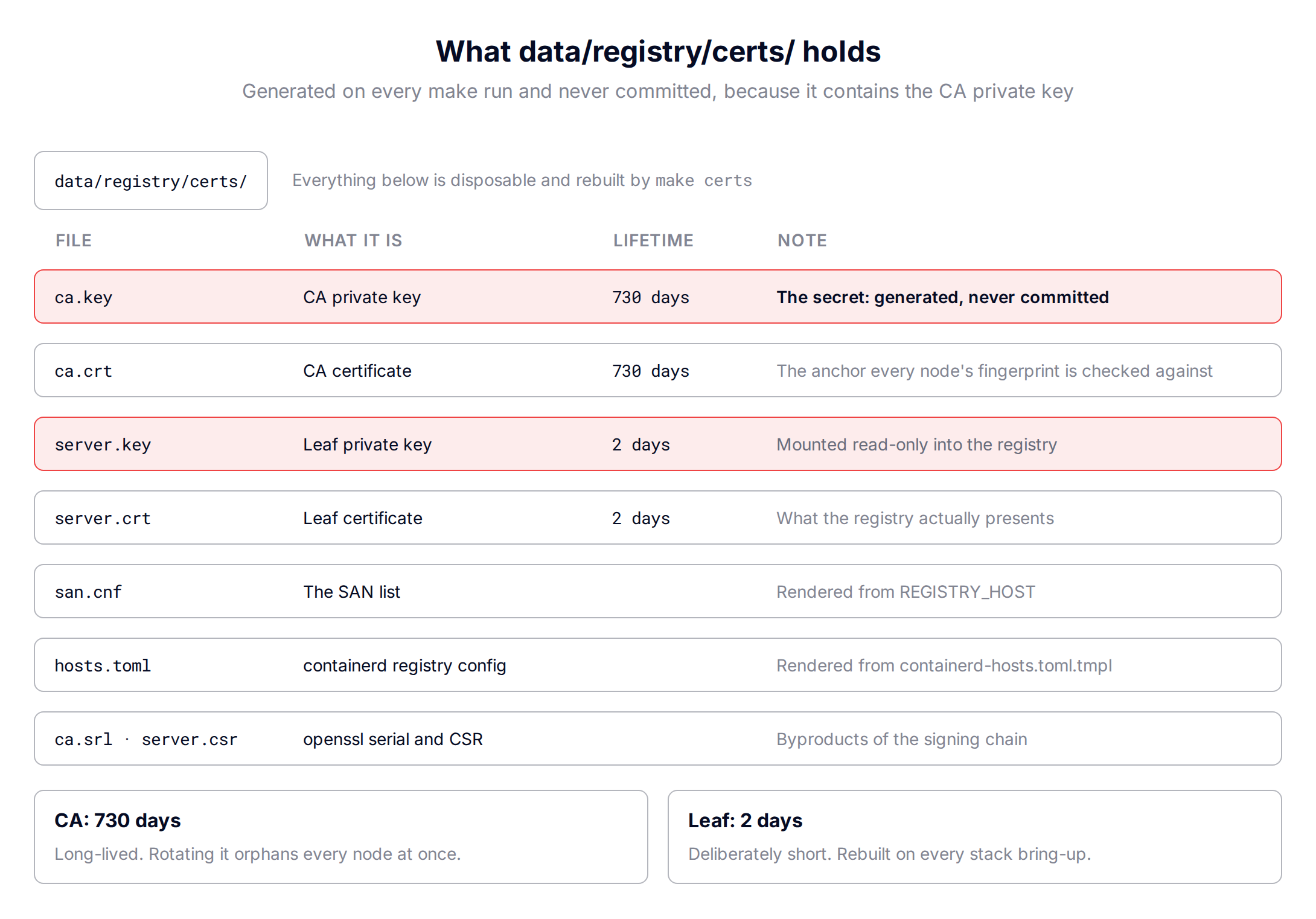

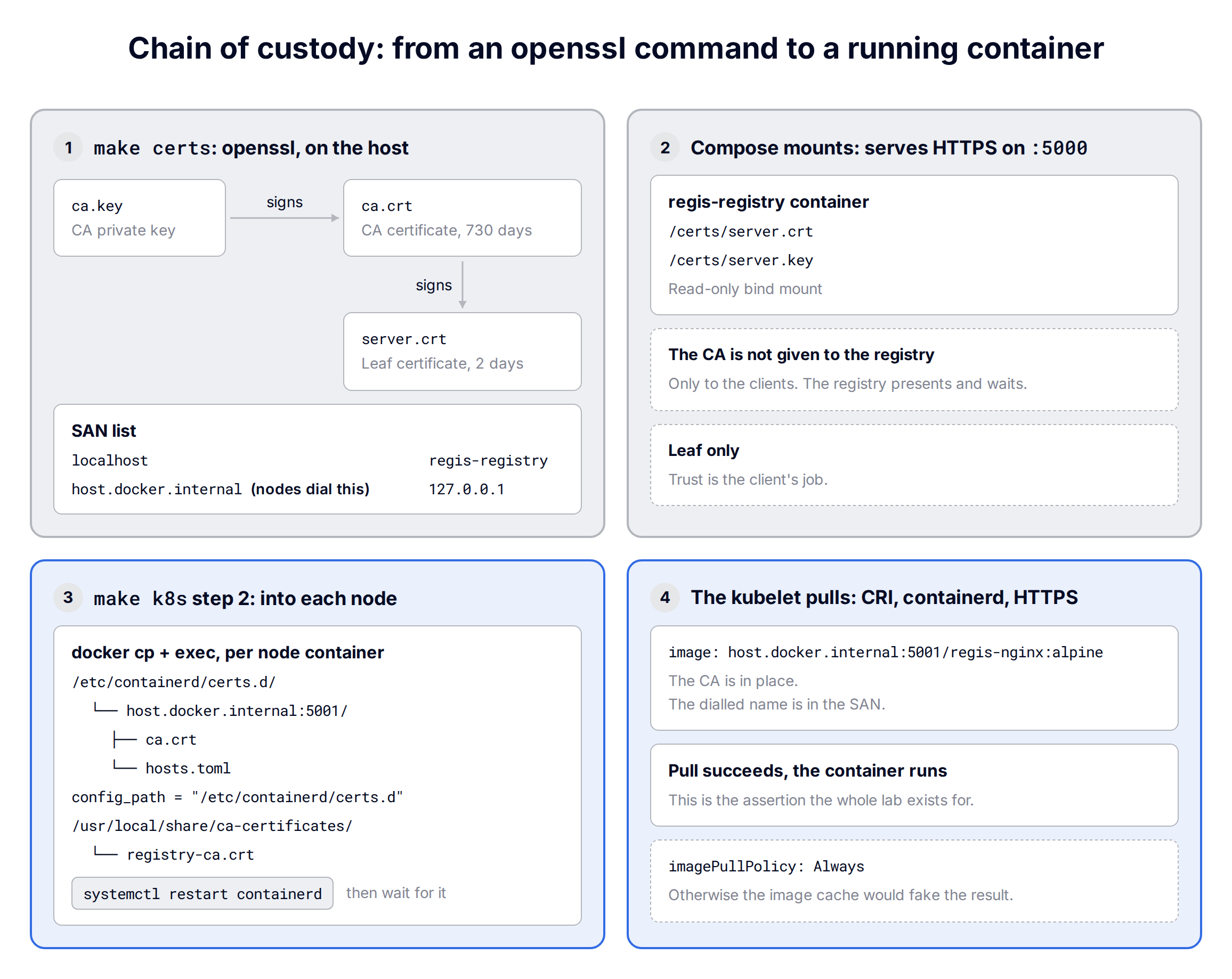

The CA is long-lived and the leaf is deliberately short: a 2-day clock on the thing that actually gets presented. Everything else is derived and disposable.

How the registry serves it

volumes:
- ./data/registry:/var/lib/registry
- ./data/registry/certs:/certs:ro
environment:
REGISTRY_STORAGE_DELETE_ENABLED: "true"
REGISTRY_HTTP_TLS_CERTIFICATE: /certs/server.crt
REGISTRY_HTTP_TLS_KEY: /certs/server.key

Trusting is the client's job. The registry is handed the leaf only, read-only: it presents and waits.

REGISTRY_STORAGE_DELETE_ENABLED is required because registry:2 refuses DELETE /v2/<name>/manifests/<digest> without it, which the UI's delete controls and scripts/purge_registry.sh both depend on.

The healthcheck trap

test: ["CMD-SHELL", "wget --no-check-certificate -q -O /dev/null https://localhost:5000/v2/_catalog || exit 1"]

registry:2 is scratch-based: no shell beyond busybox, and no curl. A curl-based probe exits 127, || exit 1 fires, and Docker marks the container unhealthy while the registry is serving 200s perfectly well.

The UI depends on service_started, not service_healthy, so it keeps working throughout. That is what makes this one nasty: a red status on a perfectly healthy registry, which sends you hunting for a fault that does not exist.

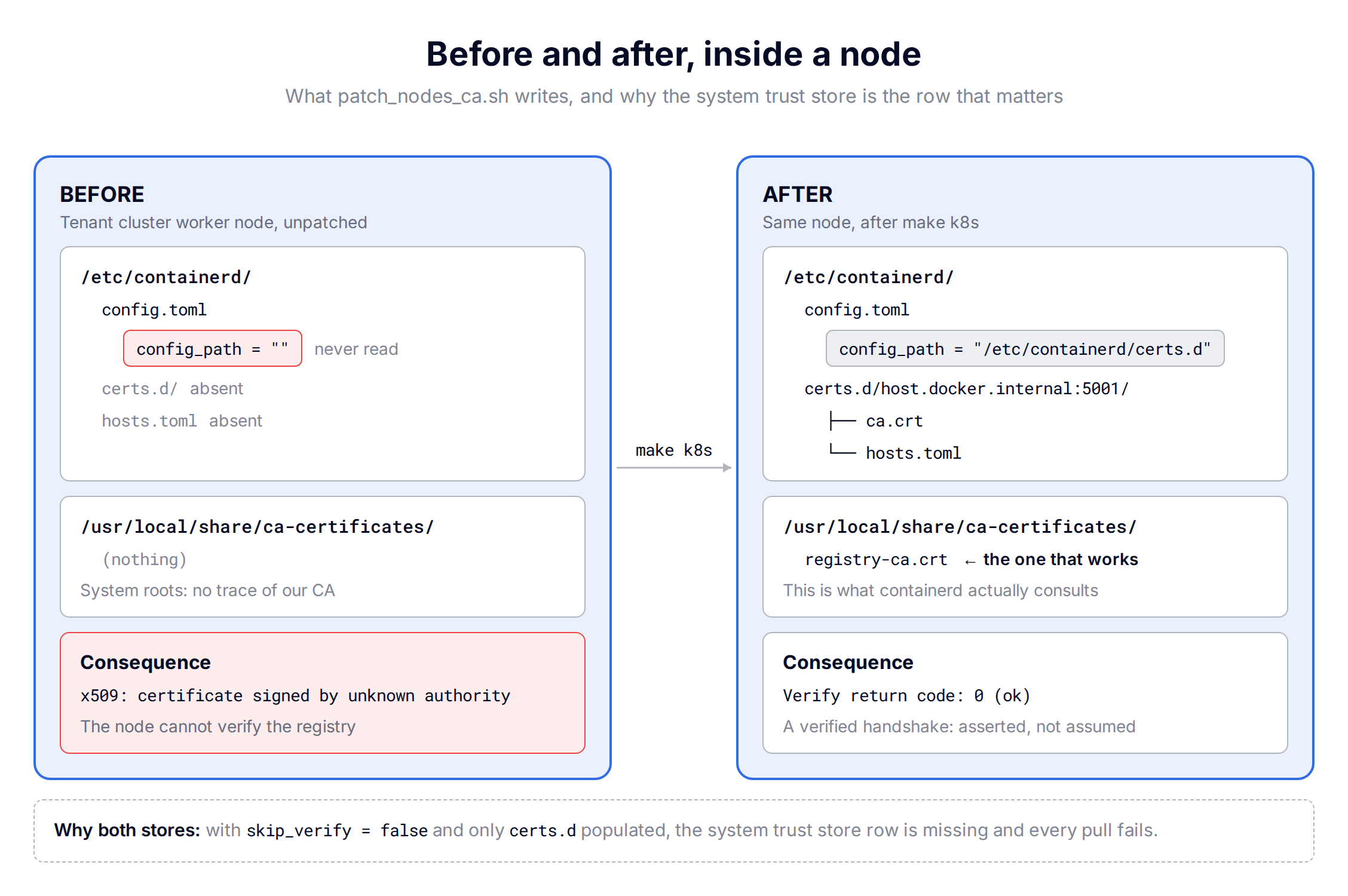

Before and after, inside a node

7. skip_verify, and why the CA goes into two places

This is the part that took the longest to get right, and it is worth reading even if you never run the lab.

The obvious configuration for a self-signed registry is:

[host."https://host.docker.internal:5001"]
ca_file = "/etc/containerd/certs.d/host.docker.internal:5001/ca.crt"
skip_verify = true # ← ...and then don't check it

Those two lines contradict each other. The CA is handed to containerd and verification is switched off, so a pull succeeds even if ca.crt is the wrong CA, or is stale. We proved this: with a certificate reading CN=BOGUS Unrelated CA installed on a node, a pod still pulled and ran.

A green deployment is not evidence that the trust chain works. It is evidence that the path is reachable.

So skip_verify is false here, and certificate verification is genuinely enforced. Which immediately exposed the next thing:

With skip_verify = false, and the CA present only in certs.d, every pull failed with x509: certificate signed by unknown authority, on containerd v2.2.3 with version = 3 config. The CA was valid (openssl verify confirmed it), it was in the right directory, the fingerprint matched, and containerd still refused it. Only the skip_verify flag was being honoured; the ca_file was not being applied.

Installing the byte-identical CA into the node's system trust store (/usr/local/share/ca-certificates/ + update-ca-certificates) made the same pull succeed immediately.

So the patch script installs the CA into containerd's two stores, and make build installs it for the daemon. Two consequences worth stating plainly:

• With skip_verify = false and only certs.d populated, everything fails.
• With skip_verify = true, the certs.d CA is never consulted, so the whole mechanism appears to work while proving nothing.

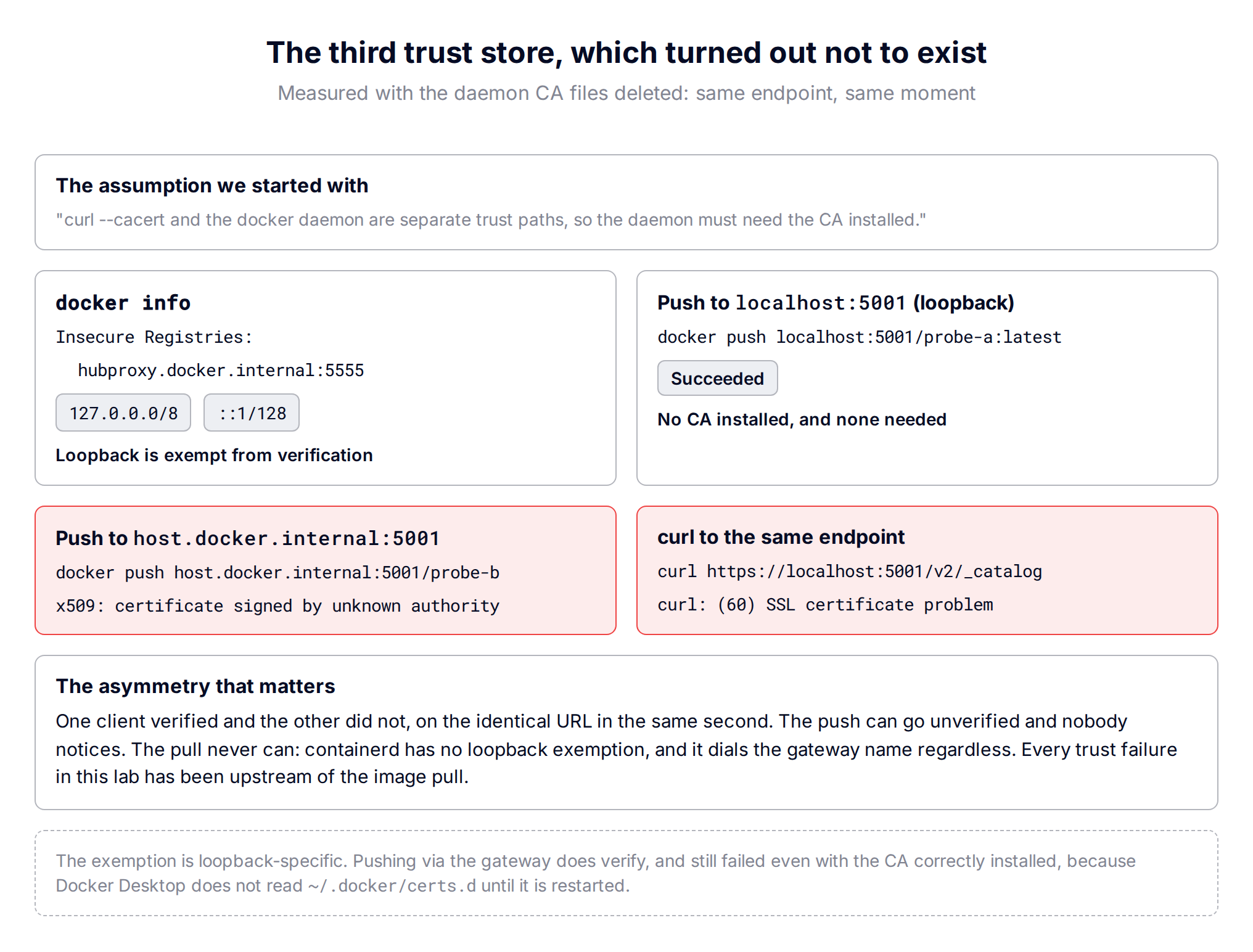

The third store, which turned out not to exist

We assumed the docker daemon needed the CA installed, because curl --cacert and the daemon are different trust paths and only the first is under our control. It didn't need it. docker info reports:

$ docker info | grep -A4 'Insecure Registries'
Insecure Registries:
hubproxy.docker.internal:5555
127.0.0.0/8
::1/128
Live Restore Enabled: false

Loopback is exempt, so the daemon skips verification for localhost:5001 outright. Measured, with the CA files deleted:

$ docker push localhost:5001/probe-full:latest
The push refers to repository [localhost:5001/probe-full]
1b349a333453: Preparing
1b349a333453: Mounted from probe-a
latest: digest: sha256:f02d5b945a633e96243d5b7ddb53c28952b672794b8915b2b5d6b2a5294264e2 size: 527

$ curl https://localhost:5001/v2/_catalog
curl: (60) SSL certificate problem: unable to get local issuer certificate

Same endpoint, same moment. One verifies; the other does not. And the exemption is loopback-specific: pushing via the gateway name does verify:

$ docker push host.docker.internal:5001/probe-gw:latest
The push refers to repository [host.docker.internal:5001/probe-gw]
Get "https://host.docker.internal:5001/v2/": tls: failed to verify certificate:
x509: certificate signed by unknown authority
(possibly because of "crypto/rsa: verification error" while trying to verify
candidate authority certificate "Local Registry CA")

That failure persisted even with the CA correctly installed, because Docker Desktop does not read ~/.docker/certs.d/ until it is restarted. So the install in make build is belt-and-braces: it buys you the ability to push via the gateway name, on a daemon that has been restarted. We push via loopback, so the lab never depends on it.

The asymmetry worth remembering: the push can go unverified and nobody notices; the pull never can. containerd has no loopback exemption, and it dials the gateway name regardless. Every trust failure this lab has ever shown has been at the image pull, not the push.

This does have the benefit that we can bring up the Docker Compose stack and push all our infrastructure images into it, having them ready when we deploy the k8s side and need to pull during the manifest deployment.

The check that catches all of it

scripts/patch_nodes_ca.sh asserts seven things per node and exits non-zero if any fail. The last one is the one that matters:

docker exec <node> openssl s_client -connect host.docker.internal:5001 \
-servername host.docker.internal </dev/null | grep 'Verify return code'

A real, verified TLS handshake from inside the node, against the system trust store, with no -CAfile, because that is the path containerd actually uses. Everything before it checks that files are in the right place with the right bytes. This checks that the node can genuinely complete the handshake.

Caught in testing, by that check alone:

✗ worker-2 system trust store holds a DIFFERENT CA than the registry is serving
node: 55:0E:D0:10:...
want: 9A:C5:16:1F:...
the registry was re-minted after this node was patched -- run: make patch-nodes

and make app refuses rather than deploying:

ERROR: a node does not trust the current CA -- run: make patch-nodes

8. Seeing it work

All the code and diagrams for this blog can be found at Private Local Container Registry.

(And yes, some AI was used to assist during the lab… it's a tool, why not benefit from it.)

make clean # start from nothing -- this deletes the CA too
make run # mint certs, start the registry, wait for HTTPS
make preflight # is the CA on disk the CA the registry is SERVING?
make catalog # empty
make pull # fetch nginx:alpine into local Docker
make build # push that image into the registry

make catalog # regis-nginx appears
make k8s # create the cluster + inject the CA into every node
make verify-nodes # read back what landed, and prove the handshake
make app # the assertion
kubectl -n regis-pull get events --sort-by=.lastTimestamp | grep -i pulled

# → Successfully pulled image "host.docker.internal:5001/regis-nginx:alpine"
make pull-test-fail # a tag that does not exist MUST fail
make status # one screen across every layer

# Teardown is total -- every directory under ./data goes, certificates included:
make down # compose down, wipe ./data/registry
make k8s-down # delete the cluster, wipe ./data/cluster
make clean # both

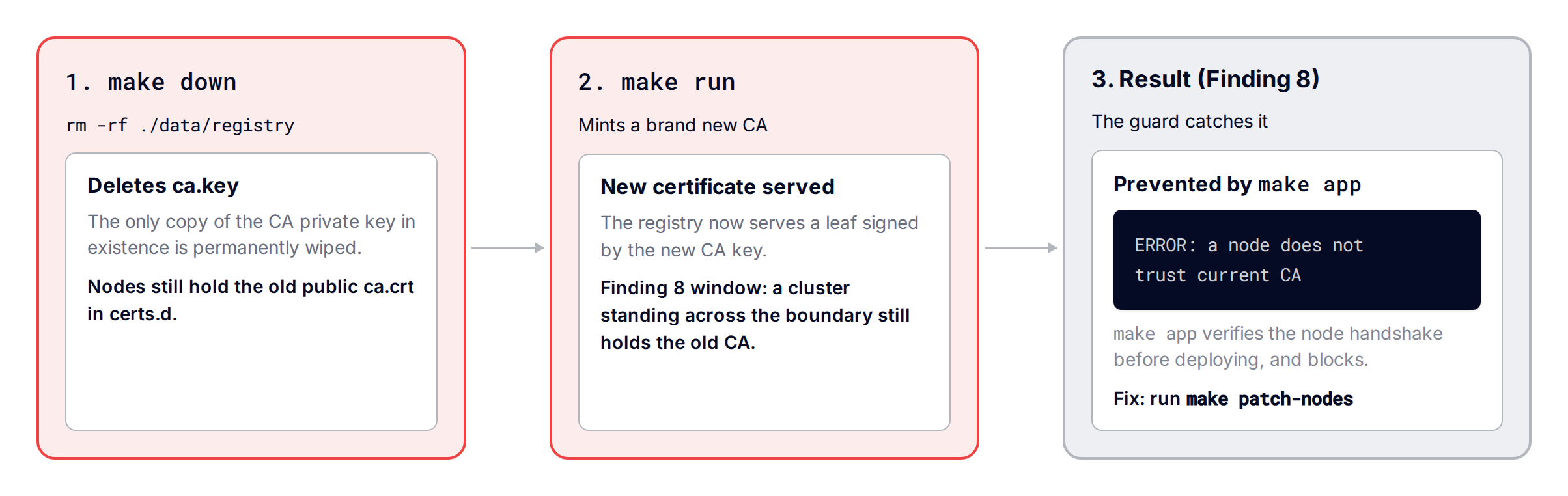

Because teardown destroys the CA, the cycle is always run → pull → build → k8s → app. Anything that needs a trusted node checks it first and refuses to proceed if that is not true.

The negative control is not a ceremony. With a self-signed registry, a wrong CA, a wrong tag, an unresolvable host and a dead registry all produce the same ErrImagePull. Without a test that must fail, "it worked" is indistinguishable from "the image was already cached on the node", which is exactly what imagePullPolicy: Always exists to prevent.

9. Diagnosing a failure

make status # every layer, one screen
make preflight # is the CA on disk the CA the registry is SERVING?
make verify-nodes # ca + hosts.toml + config_path + fingerprint + handshake
make catalog # is the tag there?

node=vcluster.node.my-regis1.worker-1 # or vcluster.cp.my-regis1

docker exec $node ls -la /etc/containerd/certs.d/host.docker.internal:5001/
docker exec $node cat /etc/containerd/certs.d/host.docker.internal:5001/hosts.toml
docker exec $node grep config_path /etc/containerd/config.toml
docker exec $node sh -c 'systemctl is-active containerd'
docker exec $node journalctl -u containerd --no-pager -n 20

make preflight exists to separate two failures that look identical from a pull: the registry is down, and the registry is serving a different certificate than the one on disk.

10. What we found along the way

Each of these was measured in this lab, not inferred.

The general lesson, and the reason this is written down: a green result from a chain you cannot inspect is not evidence. Every one of the eight above is a case where the output said ✓ and the mechanism did not work, or worse, worked for a reason that had nothing to do with the thing being claimed.

11. Purging and recovering

Purging the registry

./scripts/purge_registry.sh # delete every manifest, registry stays up
./scripts/purge_registry.sh --full # volume wipe; PRESERVES certs/

--full deliberately keeps certs/. Wiping it would destroy the CA private key while nodes still hold the old public CA: the orphaned-trust-anchor state.

Recovering a CA you have lost

If certs/ is gone but the nodes are still standing, the CA can be copied back out of a node and verified against the live endpoint:

./scripts/recover_registry_ca.sh

It cannot recover ca.key, because nodes hold only the public ca.crt. Regenerating instead would rotate the CA out from under the running nodes, which is the orphaned-anchor problem wearing a different hat.

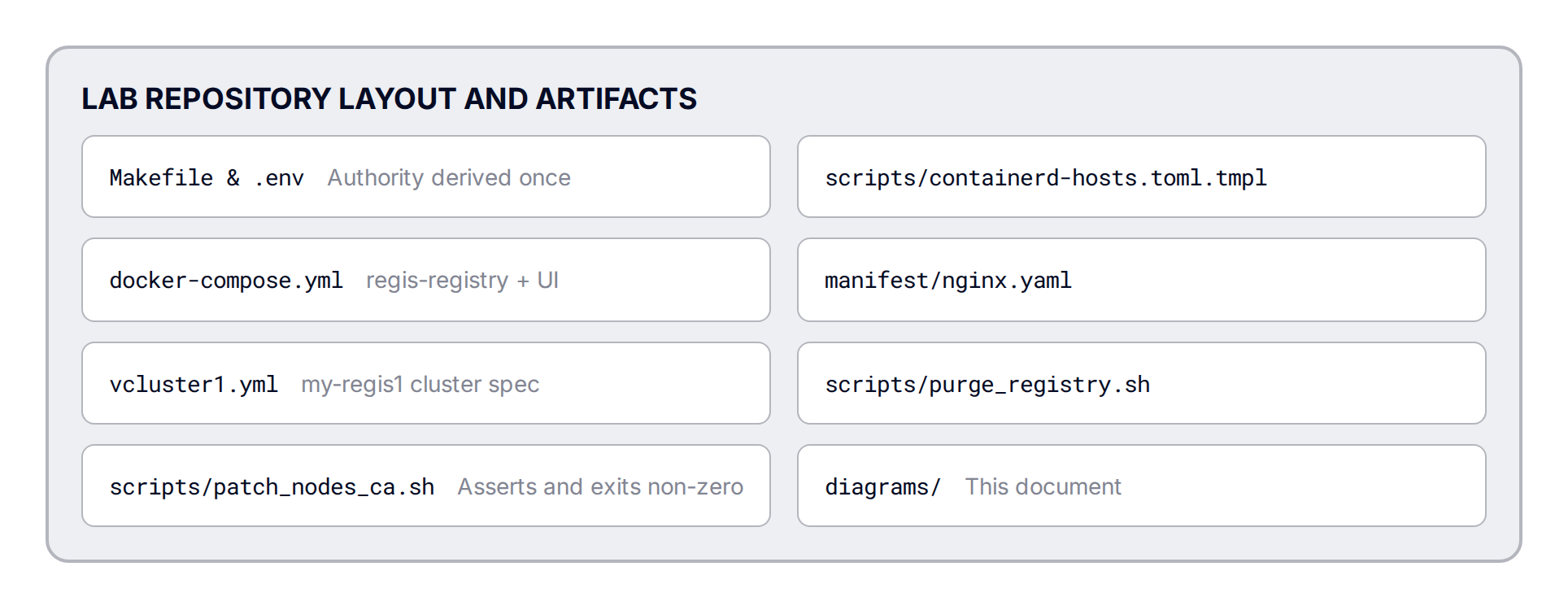

12. Where things are

make help # every target
make status # where everything currently stands
